Fireplaces & Flues from Branson Holdings
Flue-pipes

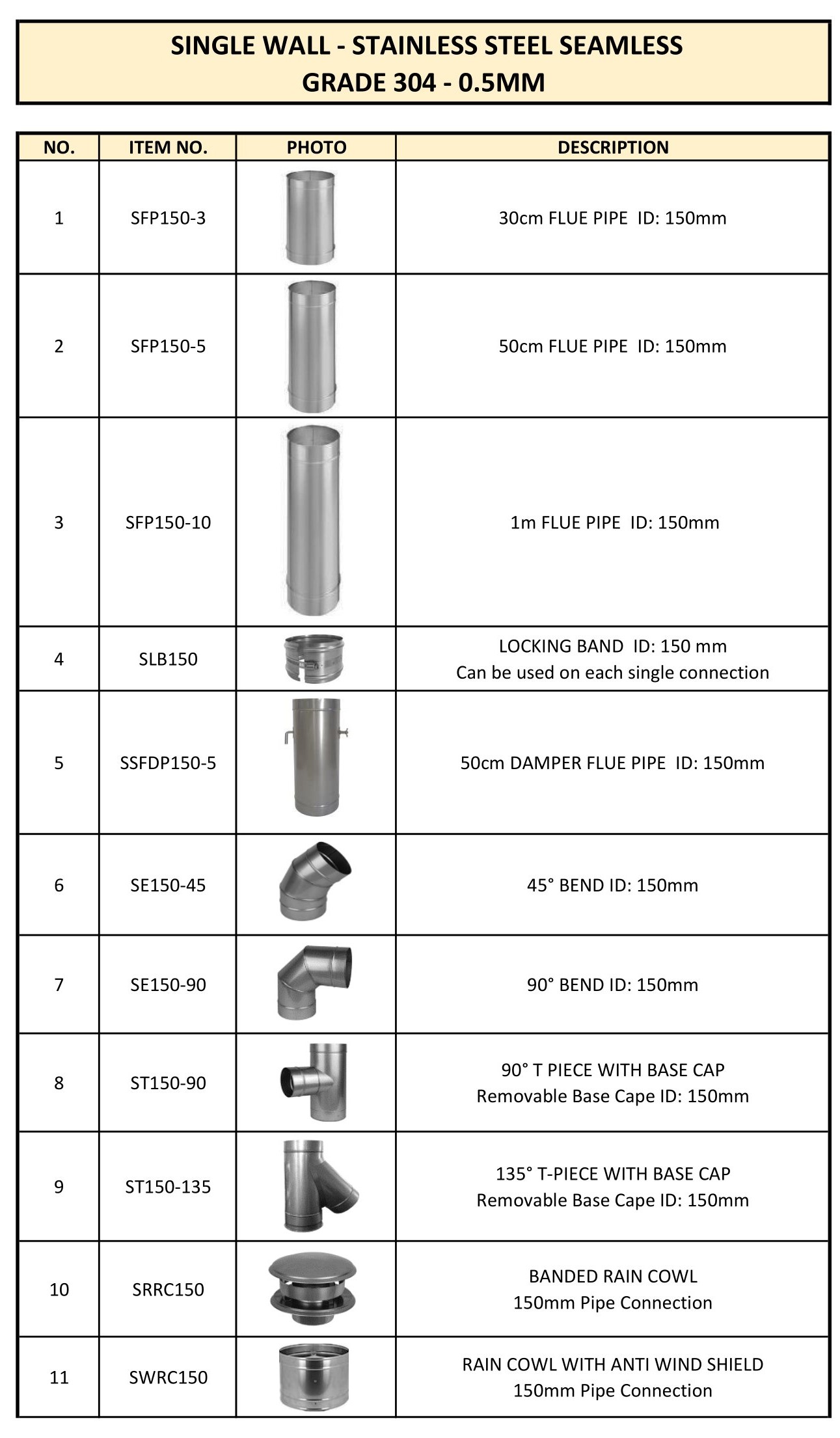

Our 135mm flues are made from seamless 0.45mm grade 304 stainless steel and our 150mm flues are made from seamless 0.5mm grade 304 stainless steel. “Seamless” refers to the clean, smooth join.

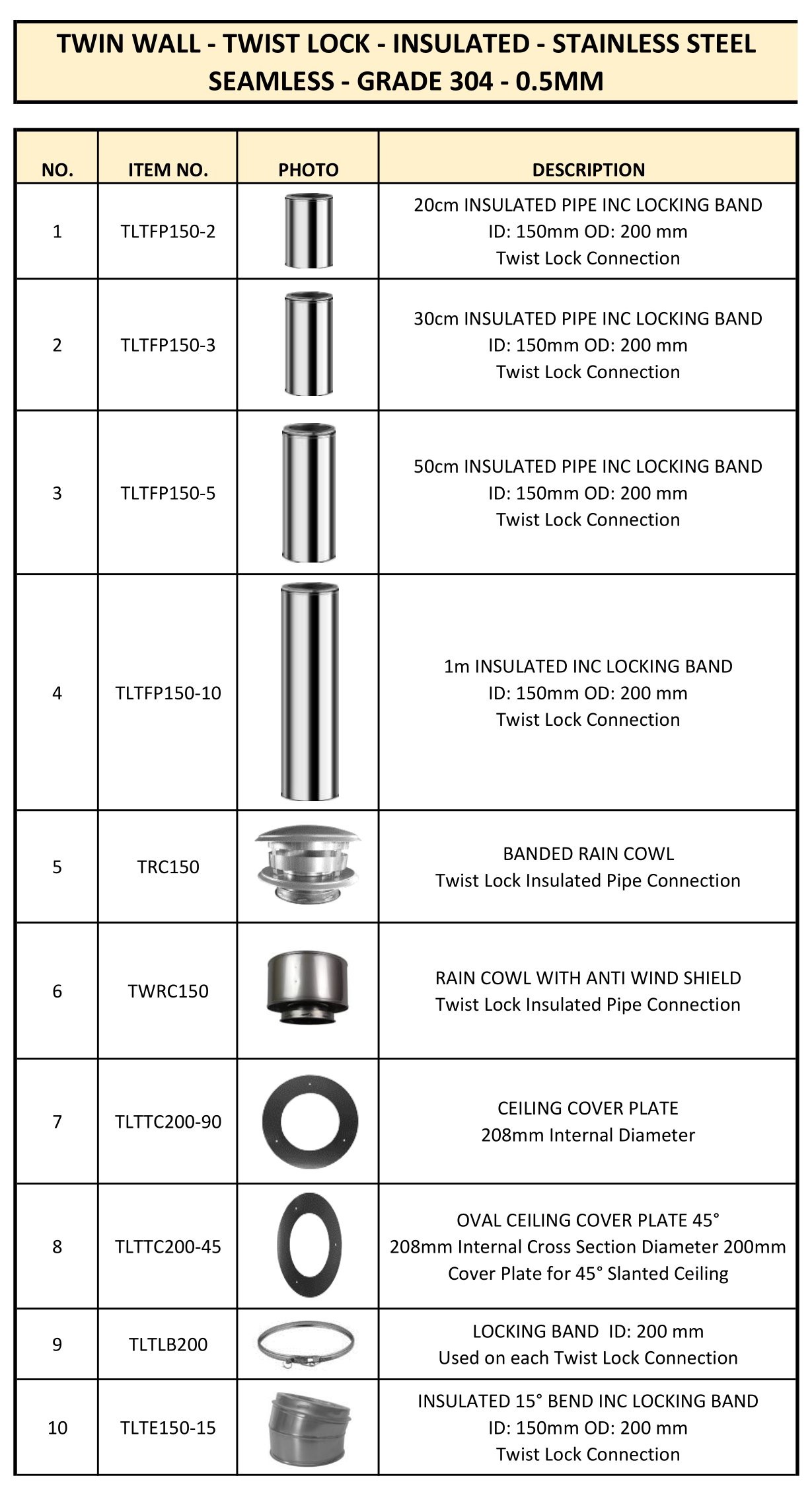

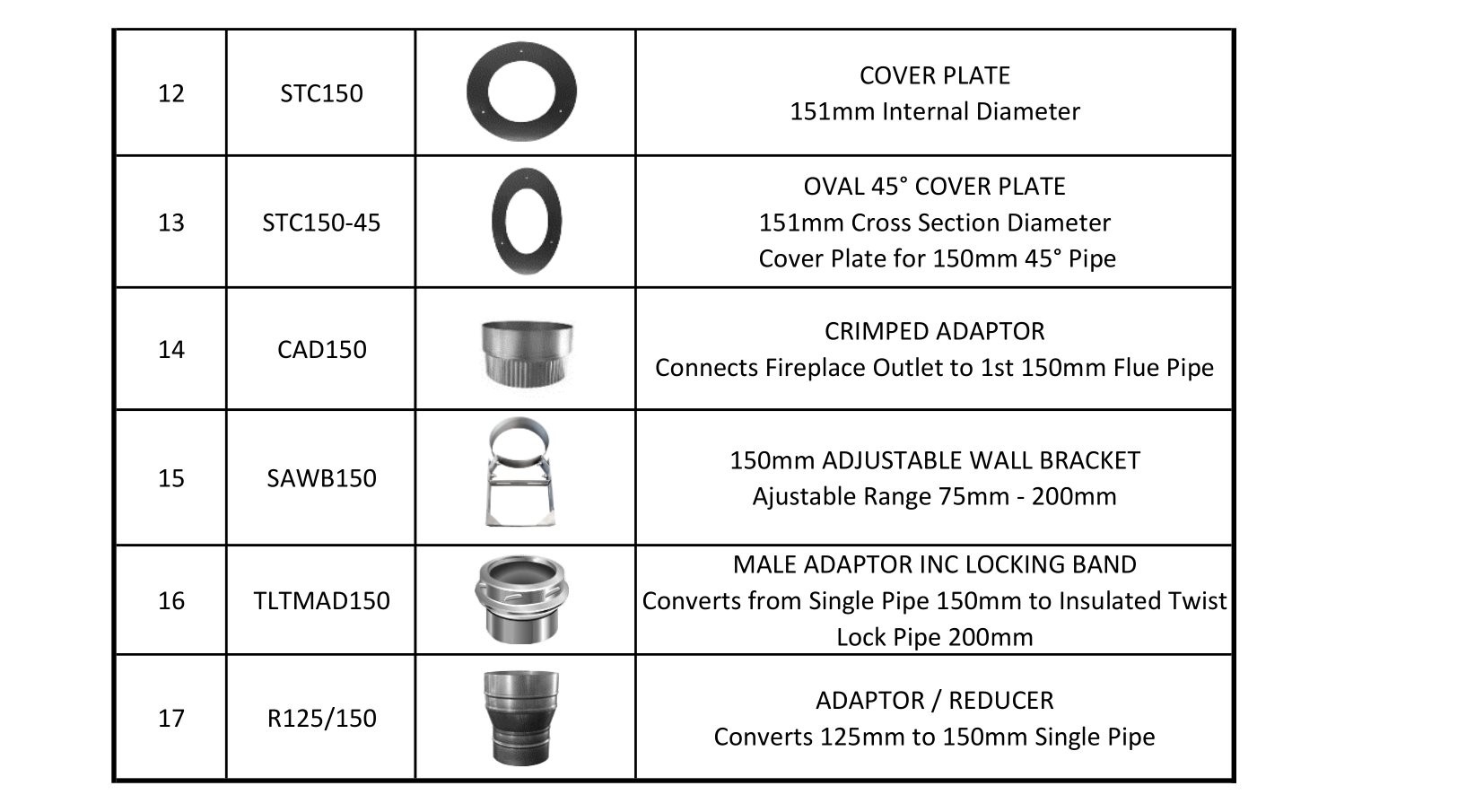

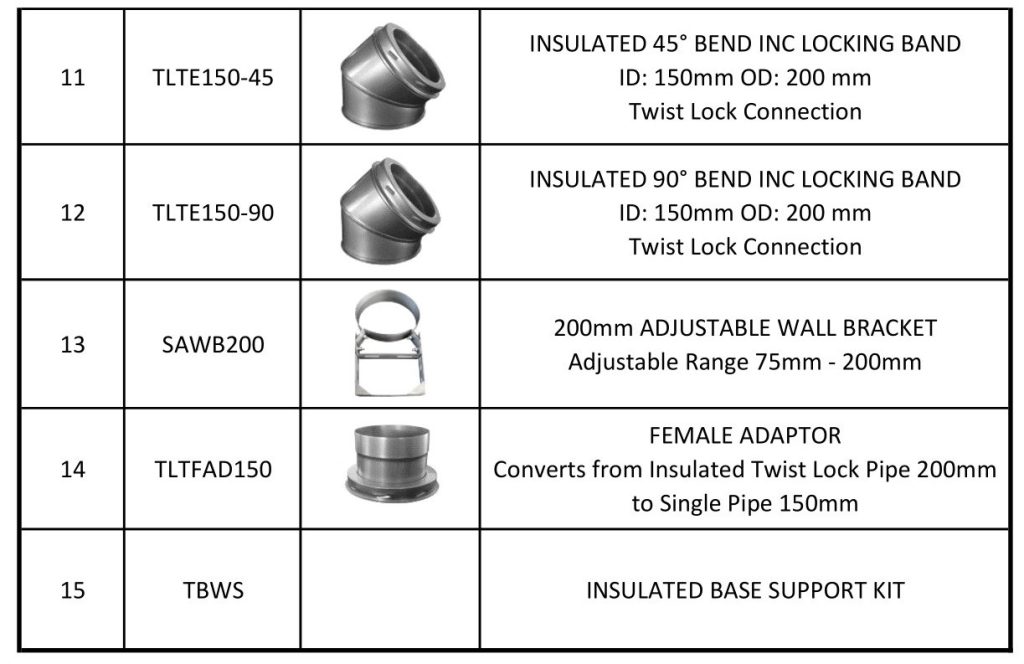

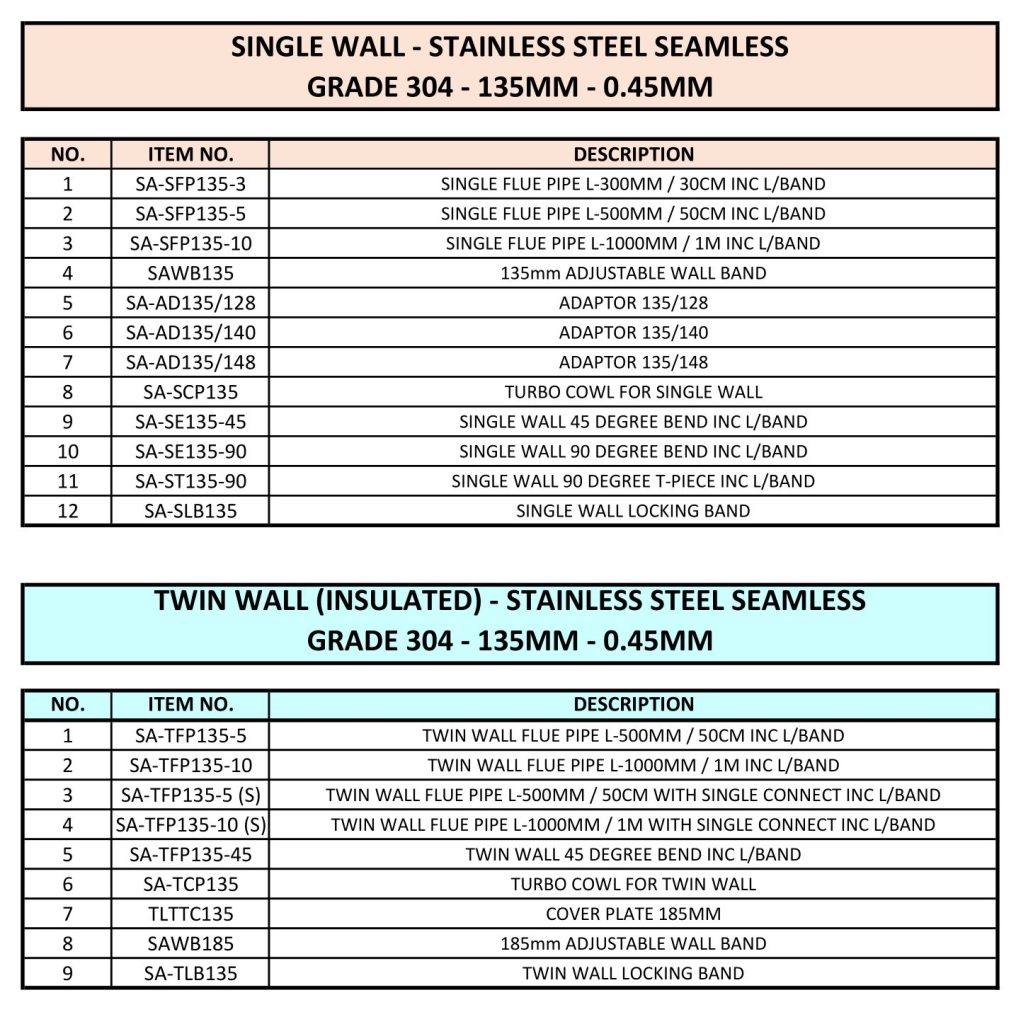

We can offer a standard insulated flue kit and an external flue kit, alternatively you can make up your own configuration from the parts list below.

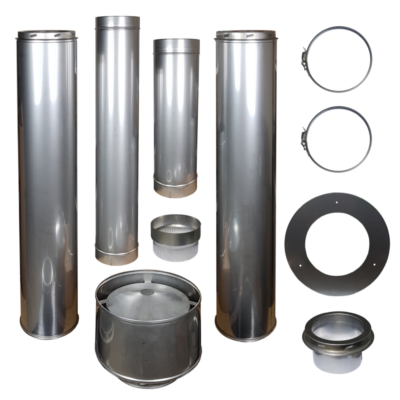

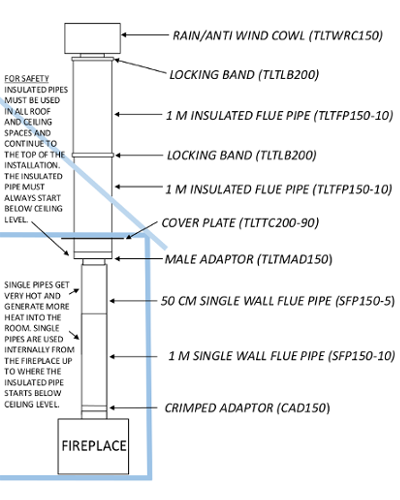

Insulated Flue Kits
Designed for a single story, standard ceiling height installation where the flue exits through the lower part of a pitched roof as in the example picture. Single pipes are used from the fireplace to below ceiling level. These single pipes get extremely hot and enhance the efficiency of the fireplace by radiating extra heat into the room. Insulated pipes are used as a safety measure in all roof and ceiling spaces.
This kit can be modified by adding or subtracting pipe lengths for different ceiling/roof heights.

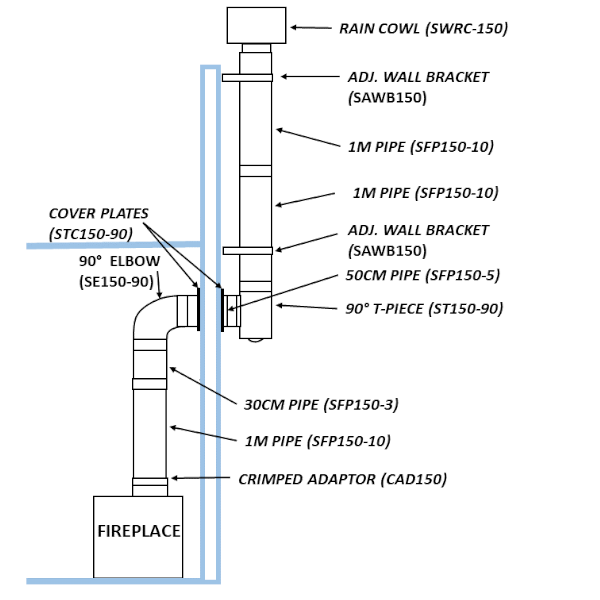

External flue kits
Designed to be used where the flue cannot go directly through the roof. The pipe goes up from the fireplace and then through the wall below ceiling level. The vertical section inside the room greatly improves efficiency by radiating extra heat. The external T-Piece catches condensation and has a removable base cover for cleaning. Although more costly, we recommend using insulated pipes on the outside wall instead of single pipes. This is done by fitting a male adaptor above the T-Piece, substituting insulated pipes for the external single pipes and using larger brackets.

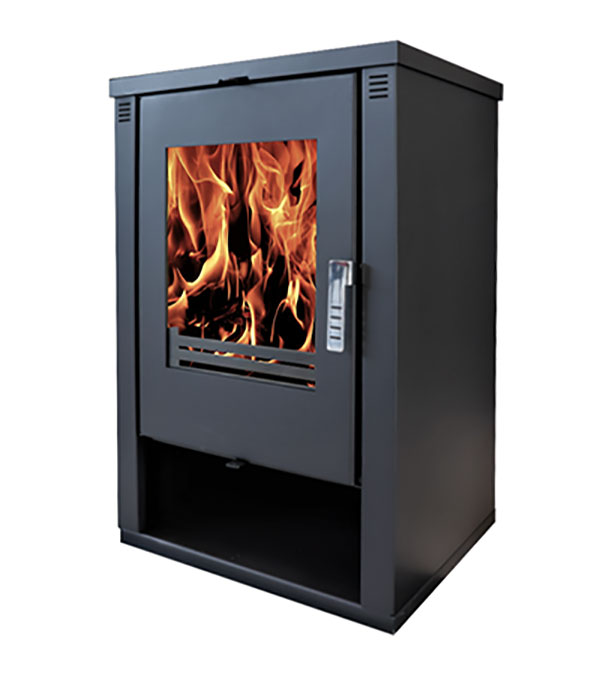

Fireplaces
Prices vary according to size and style – please contact us on info@bransonholdings.co.za for a price list.

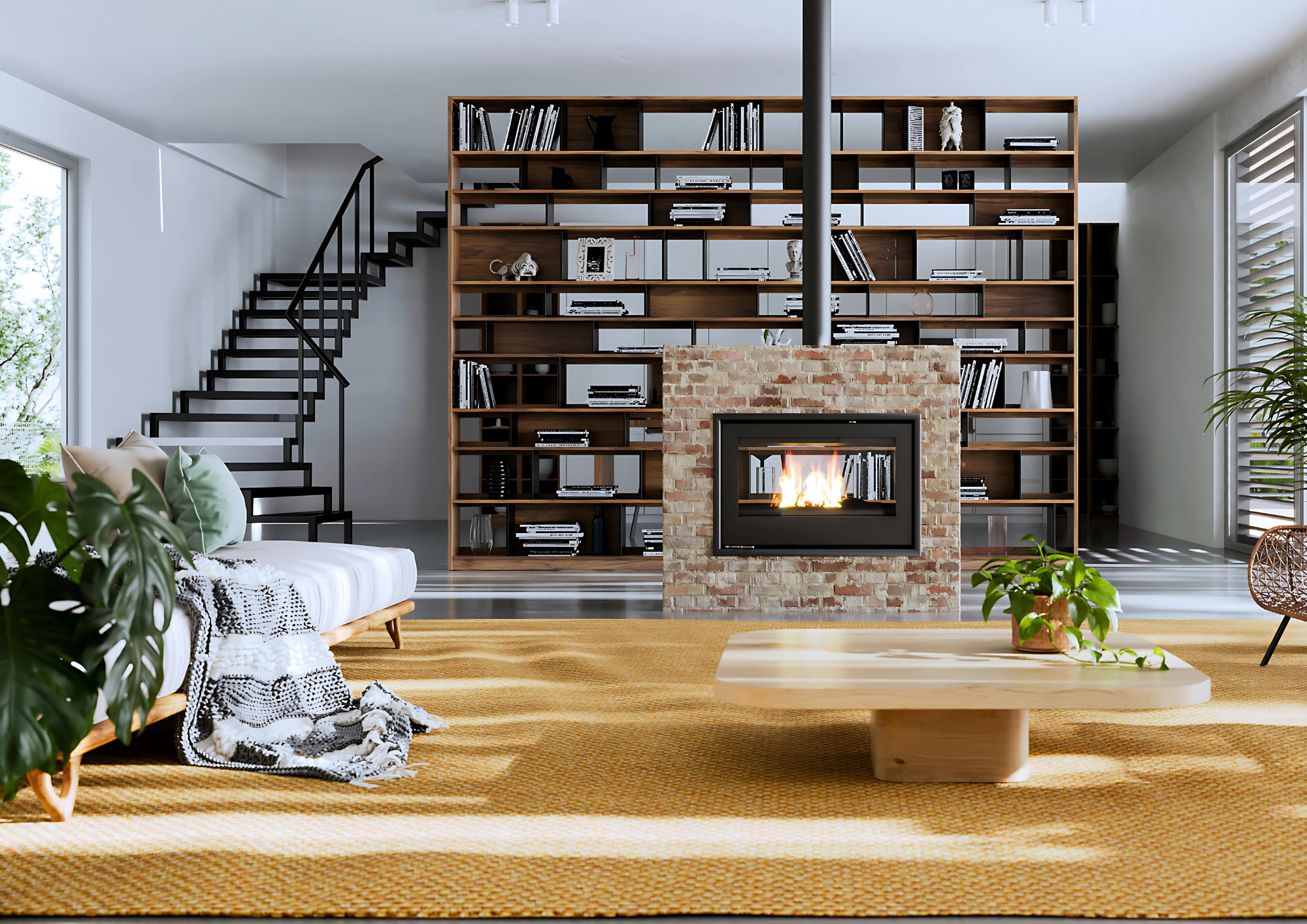

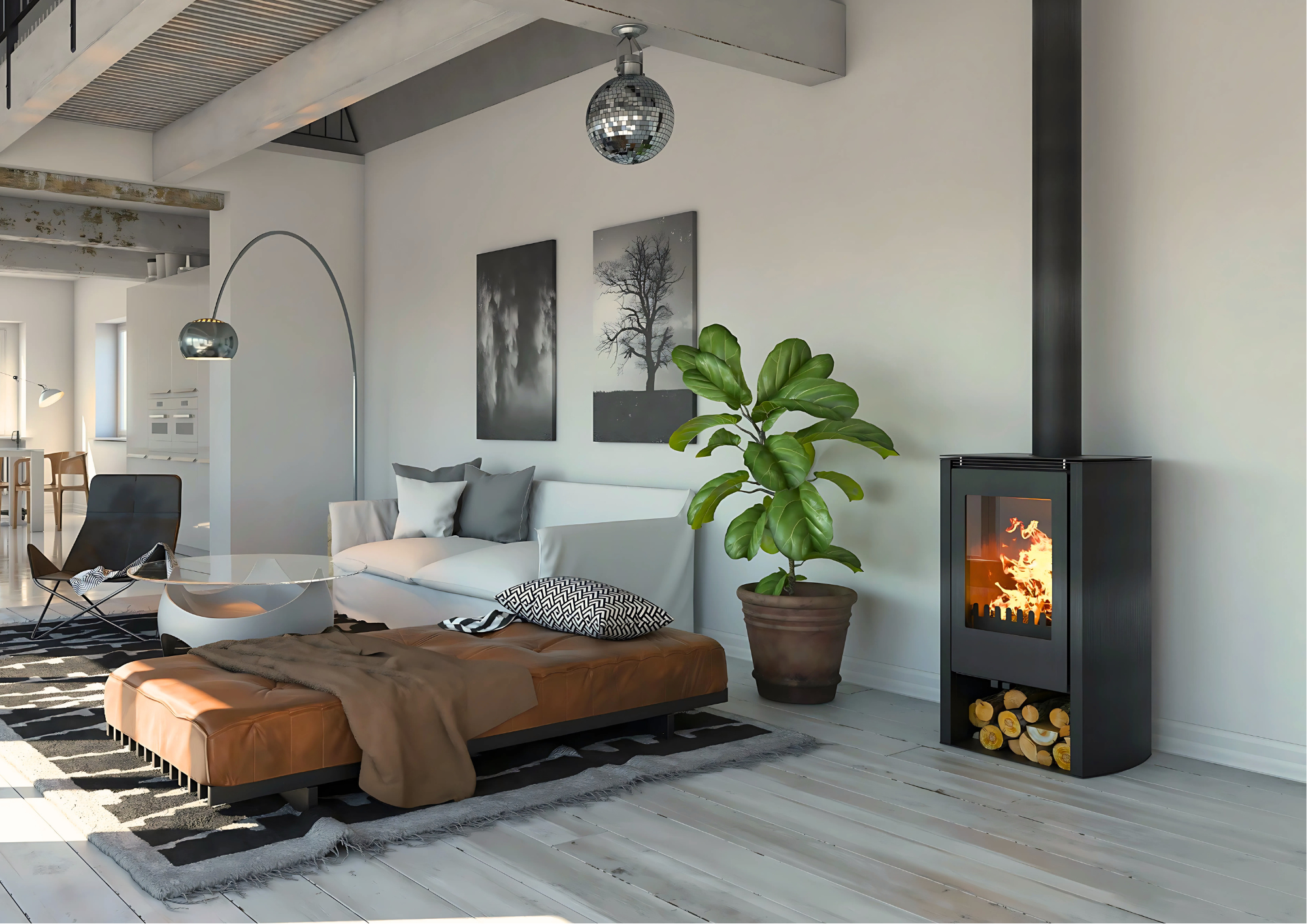

Our closed combustion fireplaces are purchased both locally in South Africa and imported from overseas in Europe and Asia.

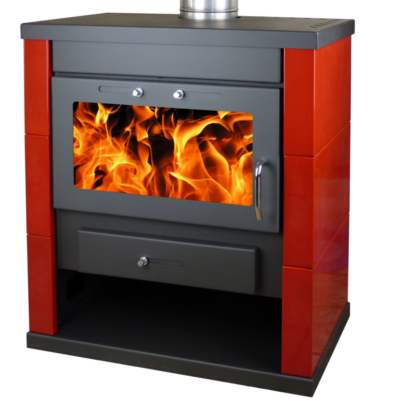

We stock both cast iron and mild steel wood-burning fireplaces to suit everyone’s individual needs. You are welcome to contact us for information and pricing or you can view the ranges at Euro Fireplaces showroom in Somerset West.
The ranges include The Shire, The Verso and Classic ranges and Heatwave ranges.

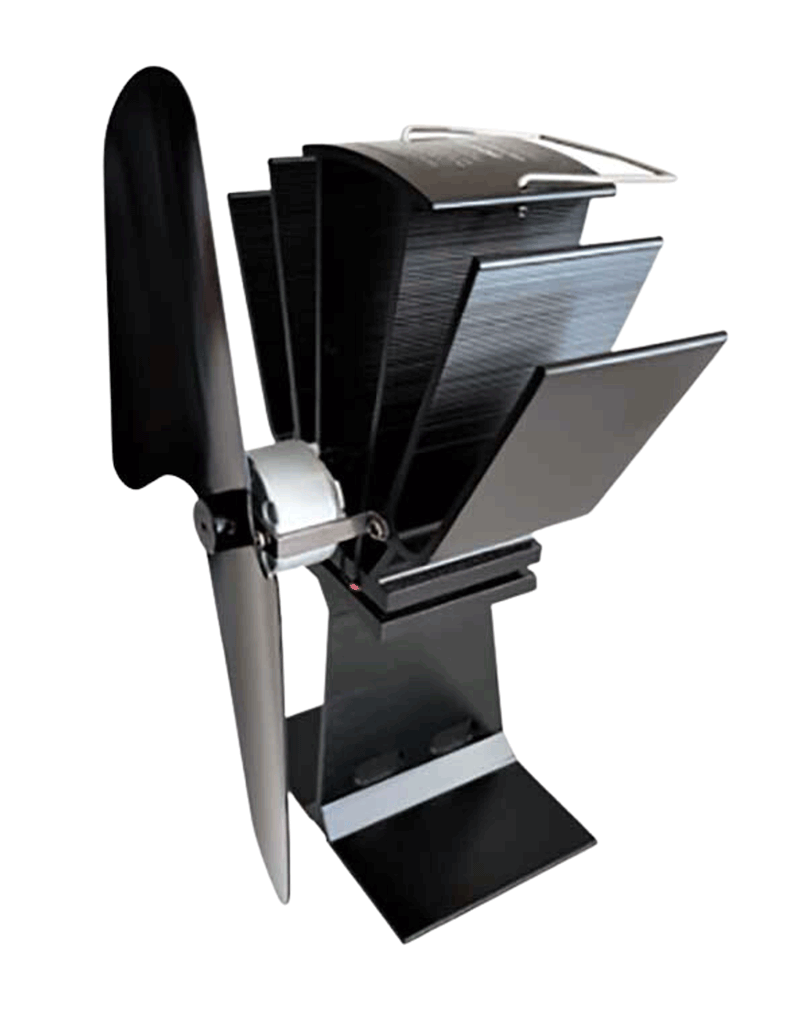

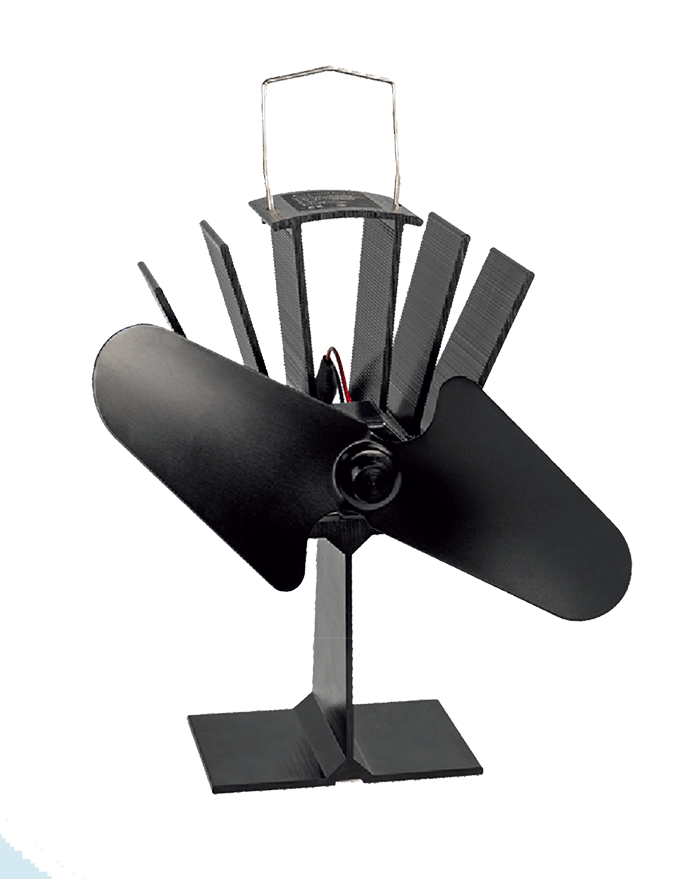

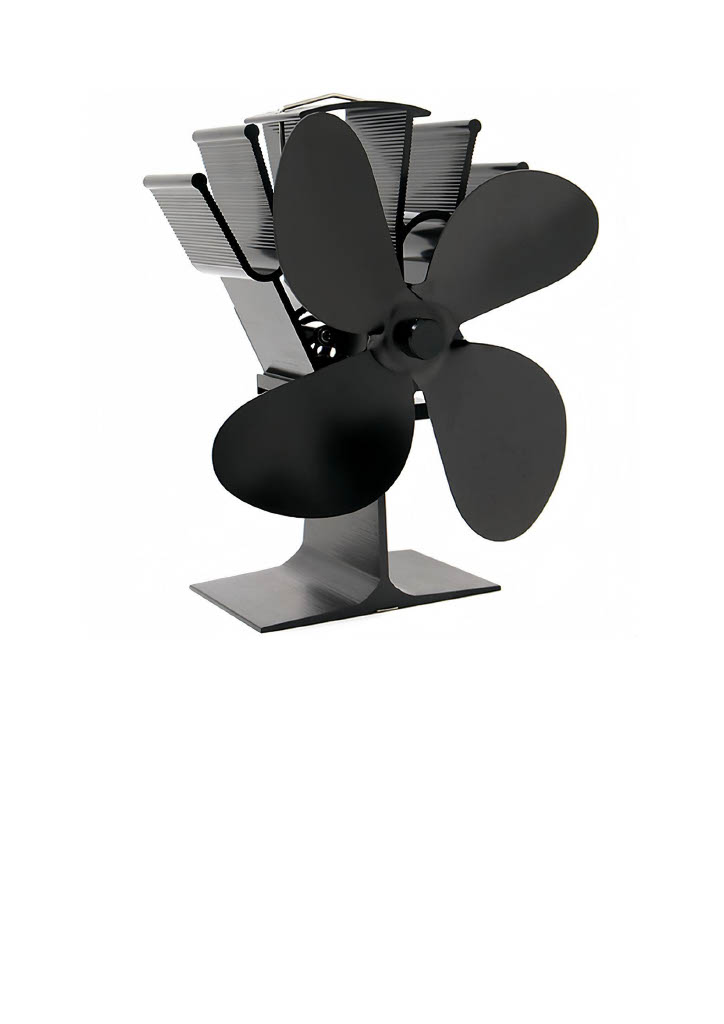

Thermal Fans
A thermal fan can improve air circulation, distribute heat and reduce fuel consumption.
Maximum Airflow: 100 CFM
Dimensions: 130mm x 120mm x 230mm (w x d x h)
The thermal fan is designed to stand on the top flat surface of a fireplace and circulate warm air throughout the room. It needs no external power, cords or batteries and creates its own electricity using the heat of the fireplace. The fan automatically adjusts speed with the temperature of the fireplace. It runs faster as the fire heats up, and automatically slows down and stops as the fire burns down and cools.
Designed to be used on the top of freestanding closed combustion fireplaces with a surface temperature between 110°c and 345° (230°F and 650°F). This is not a huge rush of air but a subtle airflow.
Glass, Door & Glass rope seal

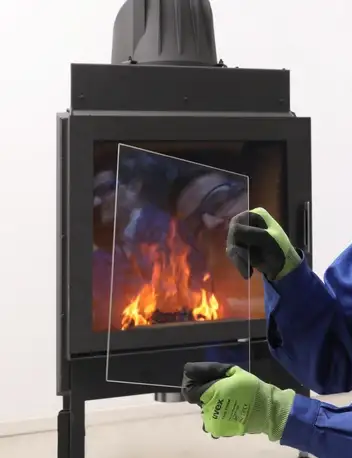

We supply heat resistant Schott Robax glass for replacing closed combustion fireplace glass windows which can withstand temperatures of up to 760 degrees celsius with almost no thermal expansion. Whether it is cracked, chipped, damaged, or no longer clear and needs replacing, we can cut to size.
We can quote you for a replacement glass. Please provide us with the dimensions (height x width and square meters where possible) as well as indicate the style or type of fireplace the glass panel is for.
We can also supply door rope seal and glass rope seal for maintenance needs.

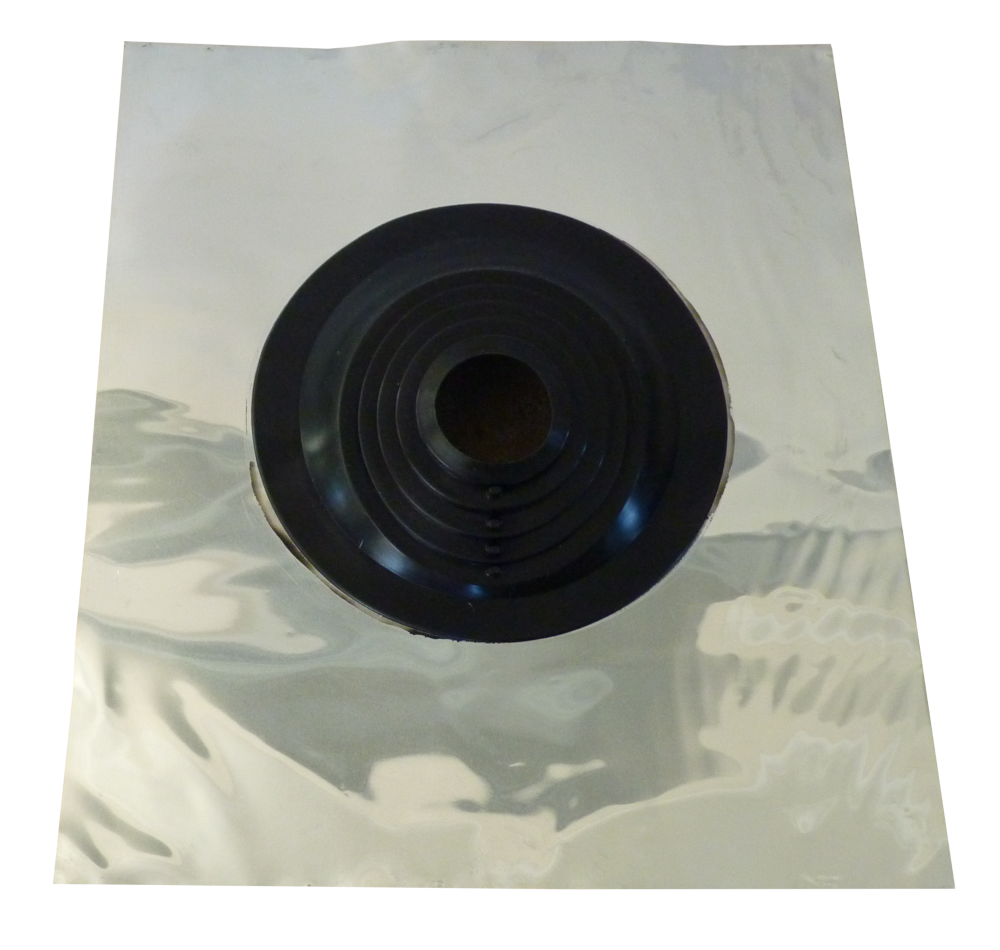

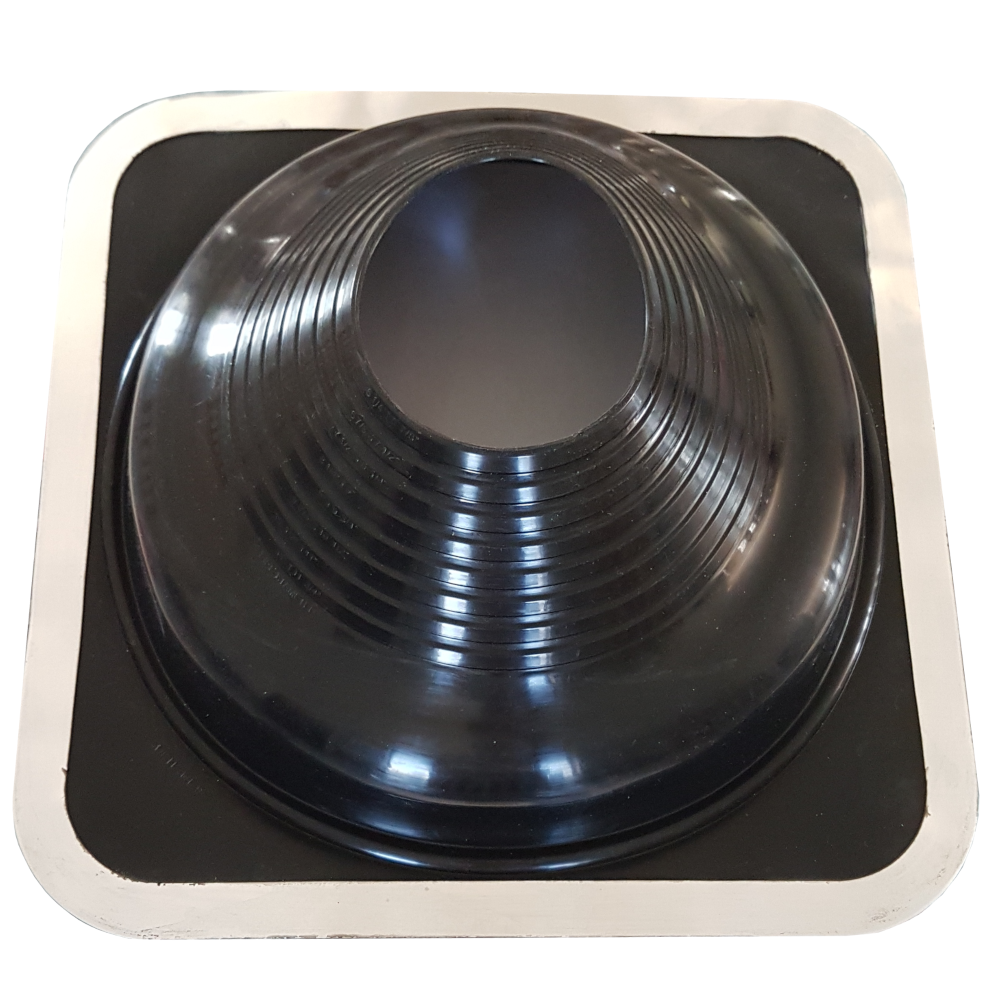

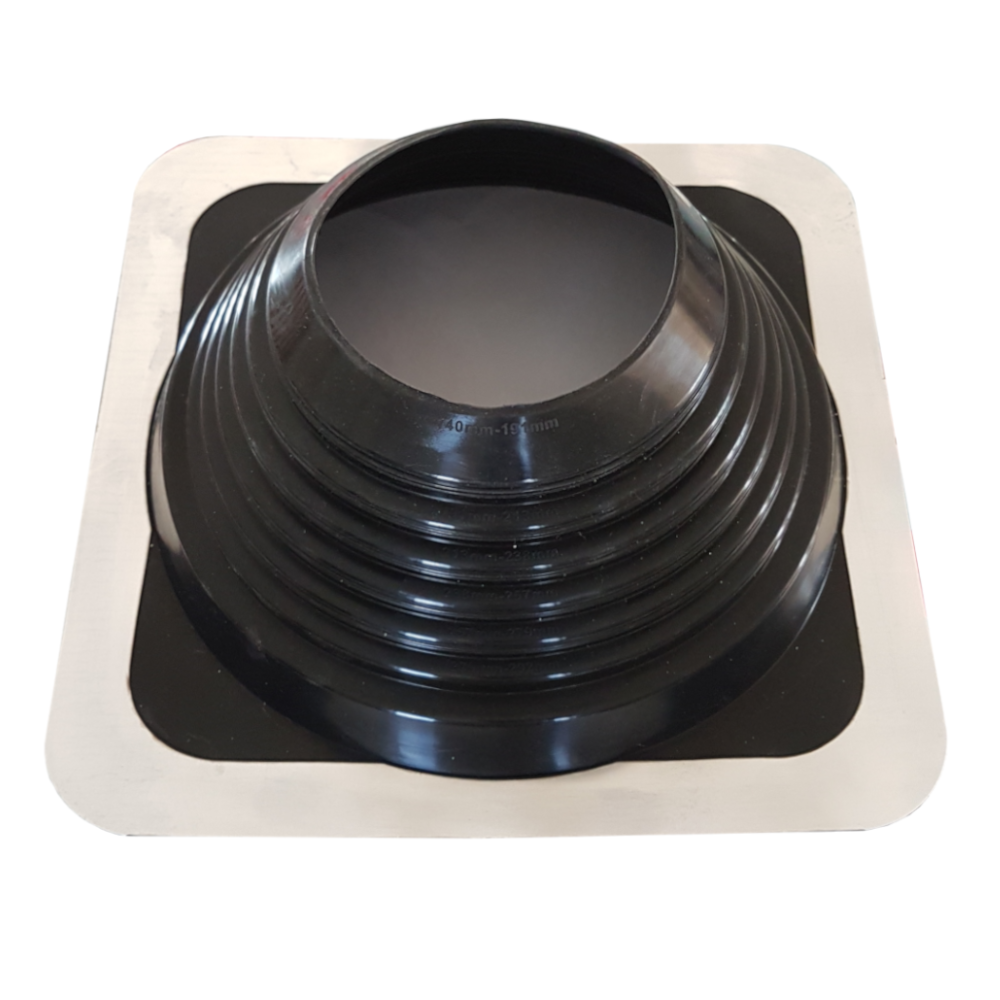

Roof Boots
Silicone roof boots with aluminium bands/bases
Prices vary according to size-please contact us for a price list

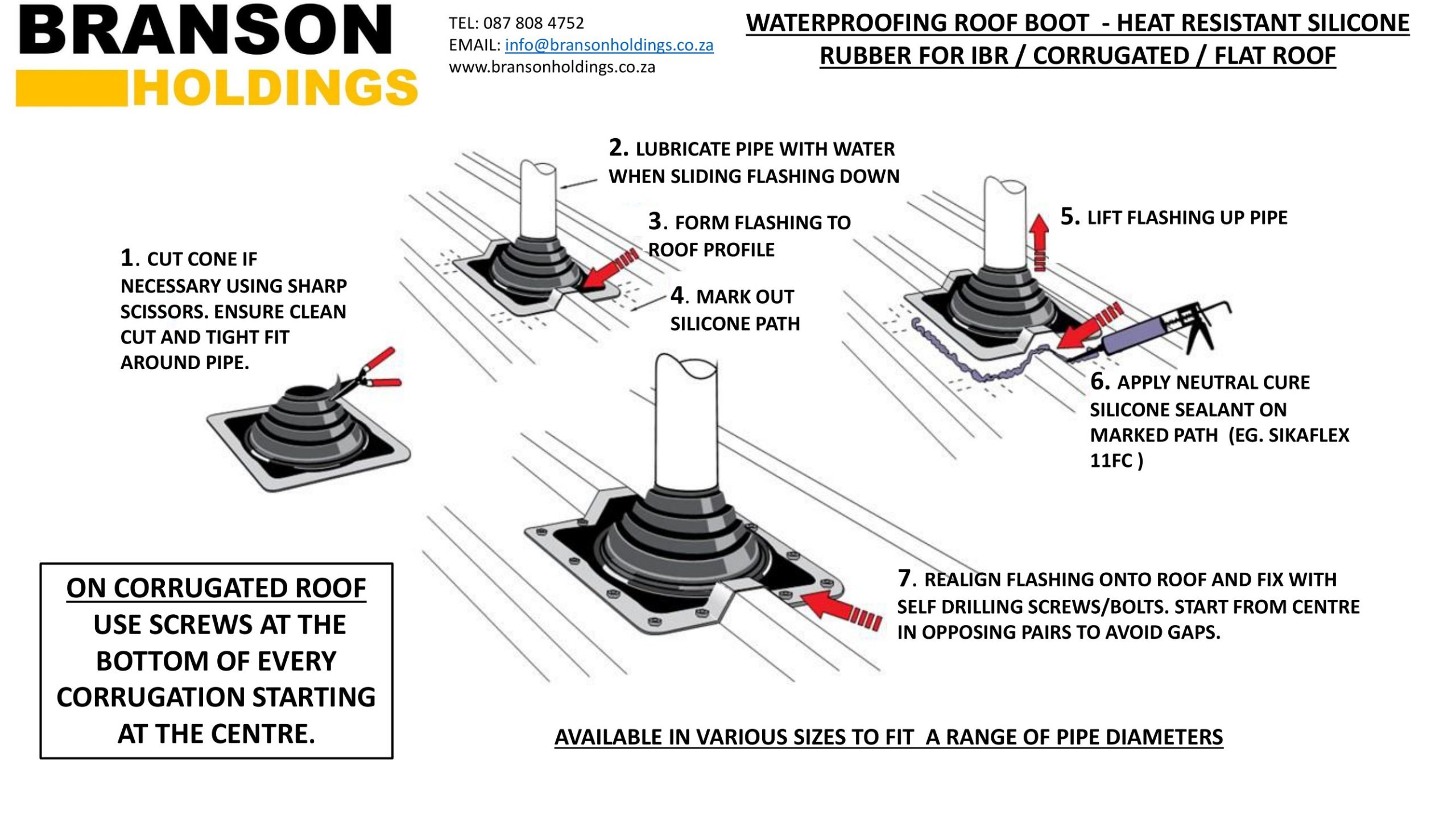

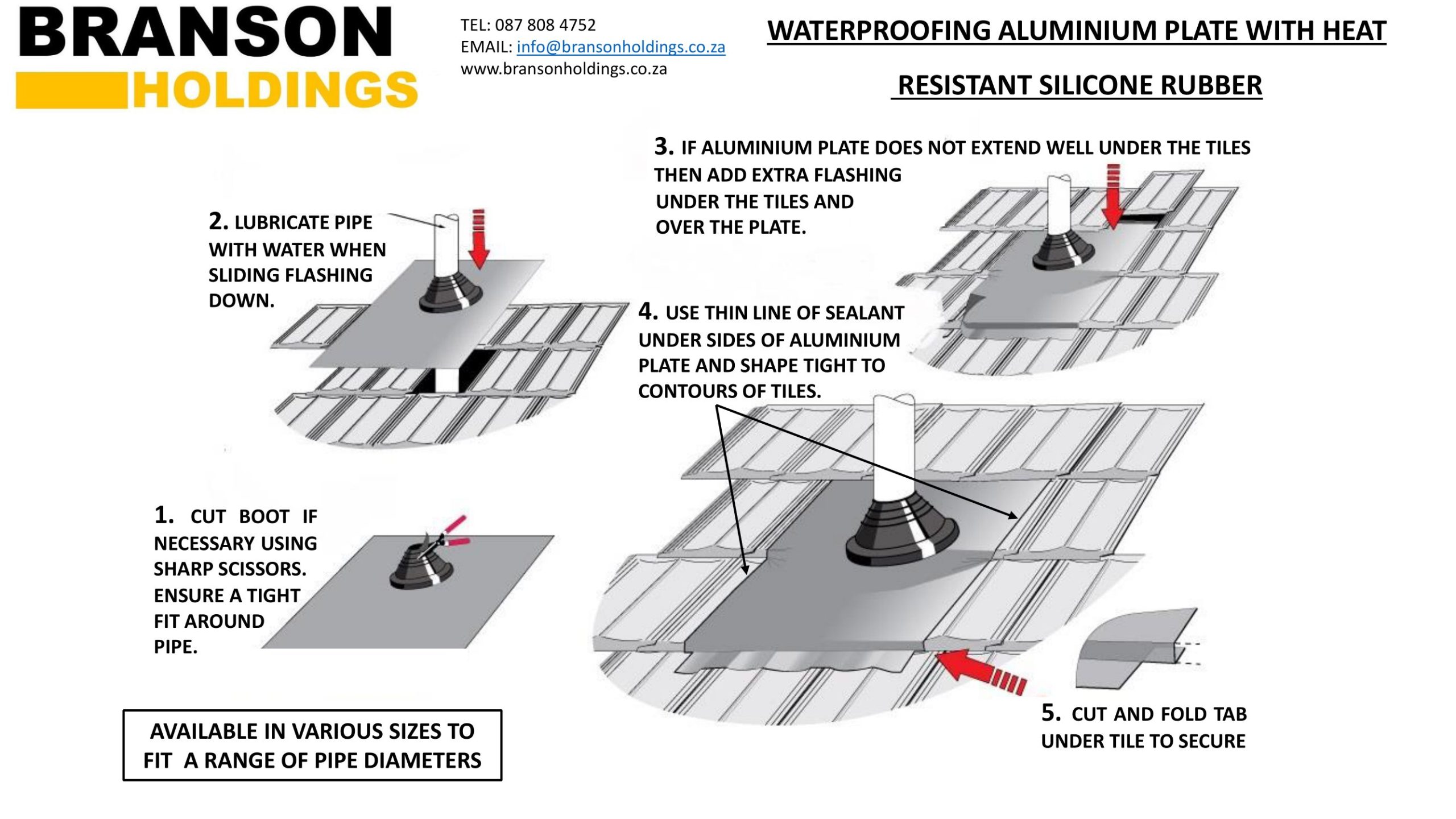

A roof boot is a rubber gasket with a bonded aluminium band that can be shaped to the contours of the roof. It forms a watertight seal where the flue pipe goes through the roof and is a fast, easy and cost effective method of waterproofing. The flexibility and heat resistance allows for a high level of expansion, contraction and pipe movement. All our roof boots are made from “SILICONE”. Silicone resists UV rays and withstands much higher flue temperatures (up to 240°c) than the alternative, cheaper “EPDM” rubber boots (ethylene propylene diene monomer). The silicone boot includes markings for accurate and easy cutting to accommodate different pipe sizes.

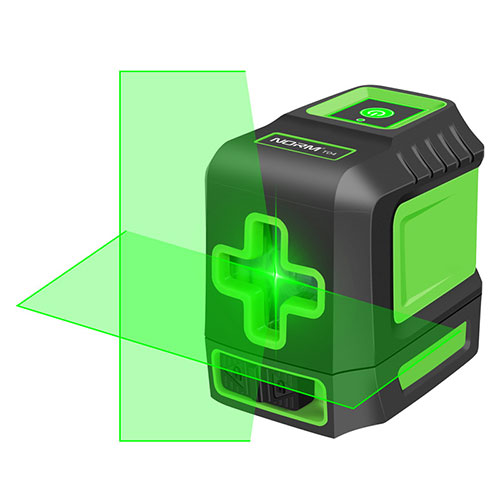

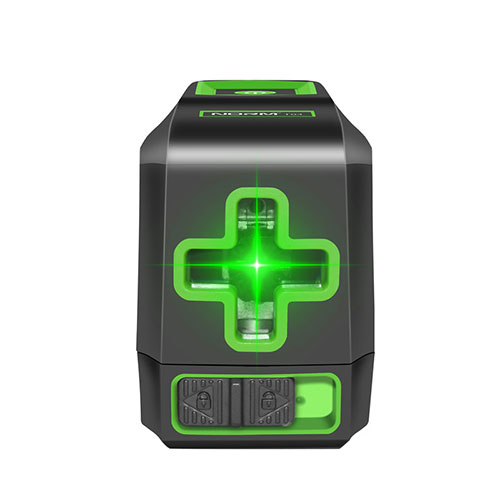

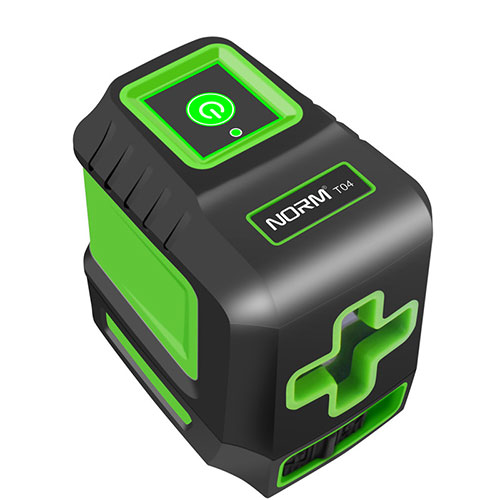

Automatic Laser Level – Green Laser Lines T04 Green Laser 20m Range
The laser level projects green vertical and horizontal lines onto flat surfaces up to 20m away. Green lasers have a greater working range than the traditional red laser lines. A magnetic pendulum system ensures automatic level alignment. It can be locked and flipped on its back for ceiling applications. Universal 1/4” thread allows for tripod mounting if needed. Users can easily ensure the item they are installing is level. Perfect alignment of tiles, pictures, mirrors, kitchen cabinets, curtain rails, wall studding, windows, doors, etc.
Features:
- Self-Levelling laser
- Automatic level alignment
- Green laser has greater working range than traditional red laser lines
- Optical “out-of-level” signal when the unit is outside its self-levelling range
- High quality diode for clear laser lines
- 3 brightness settings
- Up to 20m working range
- Small, compact design fits in any toolbox
- Sturdy rubberised casing
- Pendulum lock protects unit during transport
Specifications:
- Colour: Green
- Material: ABS Plastic/rubber
- Working range: Up to 20m
- Laser beam: 1 horizontal 1 vertical
- Laser wavelength: 505~550nm
- Laser class: 2
- Laser brightness: 3 settings
- Operation temperature range -10℃ ~ 50℃
- Beam emission angle: (H/V) 120°/120°
- Levelling compensation range: 4°±1°
- IP rating: IP54
- Levelling accuracy: ±3mm/10m
- Tripod thread: 1/4 Inch
- Power: 2 x AA batteries
- Dimensions: 8 x 8 x 6 cm
- Weight: 0.3kg

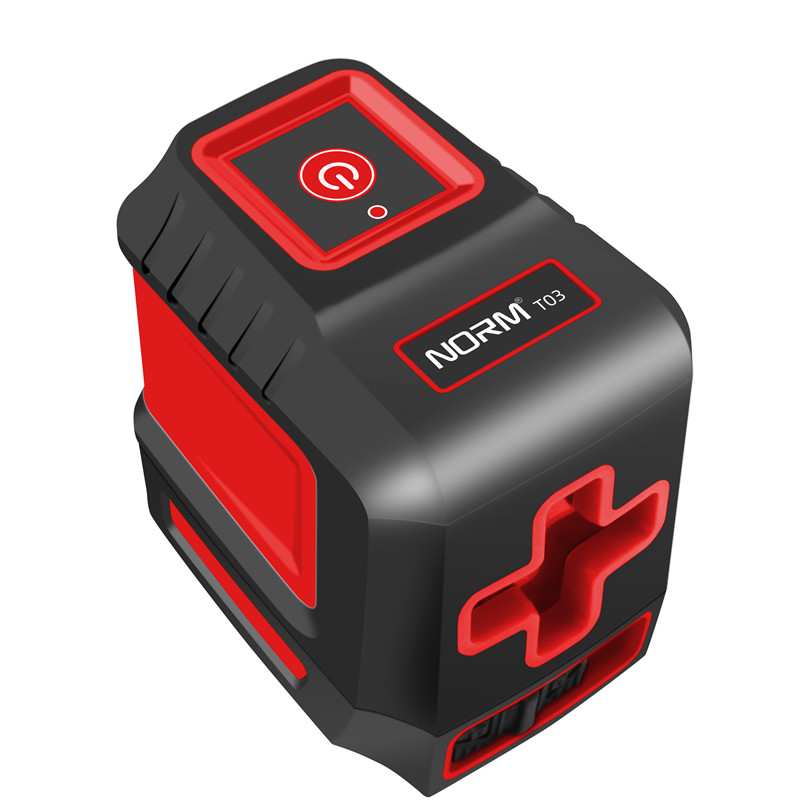

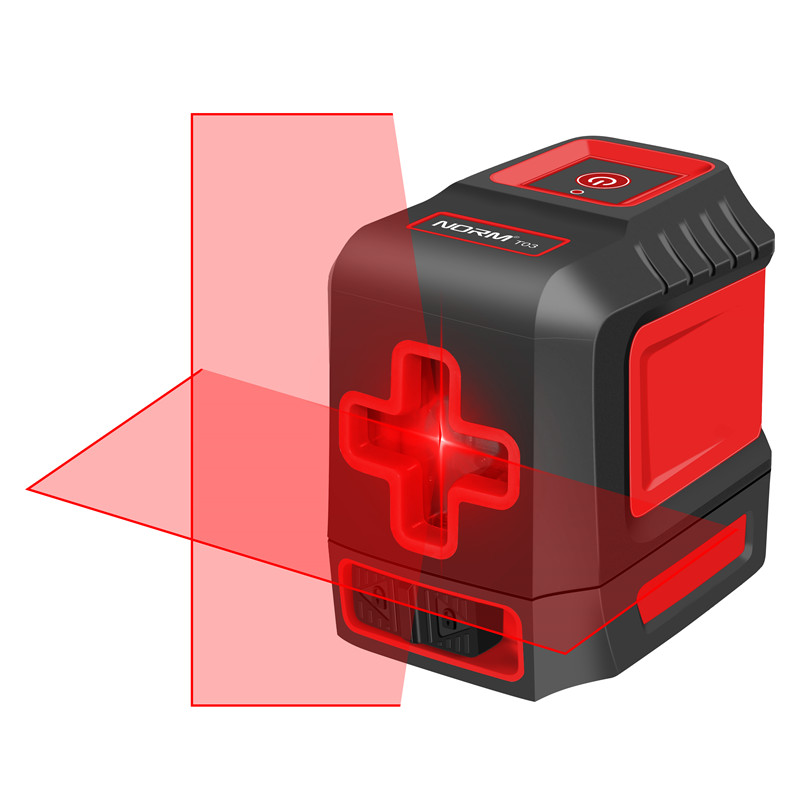

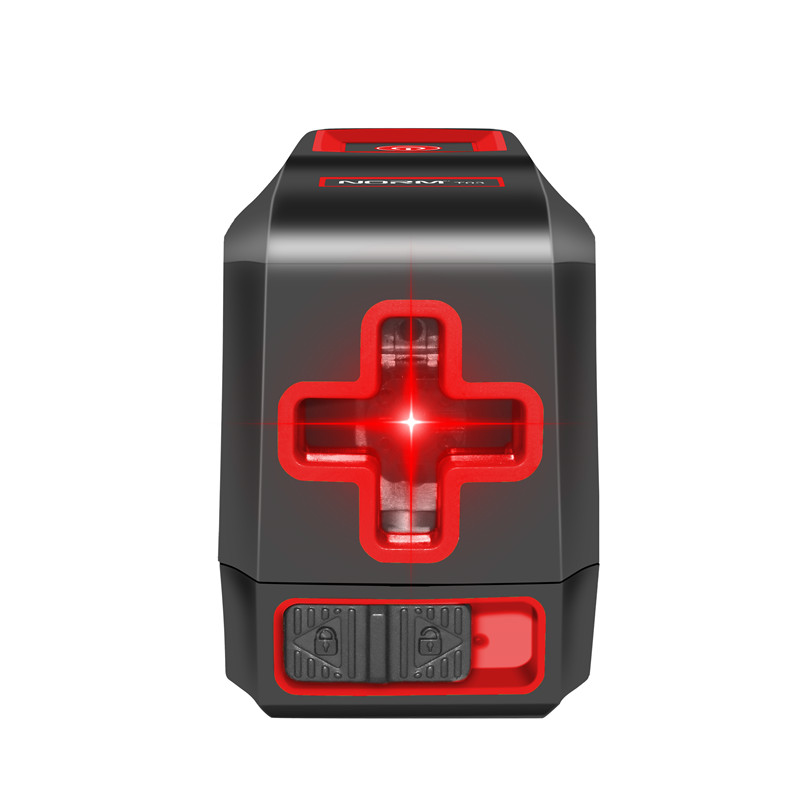

Automatic Laser Level – Red Laser Lines T03 Red Laser 12m Range
The laser level projects vertical and horizontal lines onto flat surfaces up to 12m away. A magnetic pendulum system ensures automatic level alignment. It can be locked and flipped on its back for ceiling applications. Universal 1/4” thread allows for tripod mounting if needed. Users can easily ensure the item they are installing is level. Perfect alignment of tiles, pictures, mirrors, kitchen cabinets, curtain rails, wall studding, windows, doors, etc.
Features:
- Self-Levelling laser
- Automatic level alignment
- Optical “out-of-level” signal when the unit is outside its self-levelling range
- High quality diode for clear laser lines
- 3 brightness settings
- 12m working range
- Small, compact design fits in any toolbox
- Sturdy rubberised casing
- Pendulum lock protects unit during transport
Specifications:
- Colour: Red
- Material: ABS Plastic/rubber
- Working range: 12m
- Laser beam: 1 horizontal 1 vertical
- Laser wave length: 630~670nm
- Laser class: 2
- Laser brightness: 3 settings
- Operation temperature range -10℃ ~ 50℃
- Beam emission angle: (H/V) 120°/120°
- Levelling compensation range: 4°±1°
- IP rating: IP54
- Levelling accuracy: ±3mm/10m
- Tripod thread: 1/4 Inch
- Power: 2 x AA batteries
- Dimensions: 8 x 8 x 6 cm
- Weight: 0.3kg

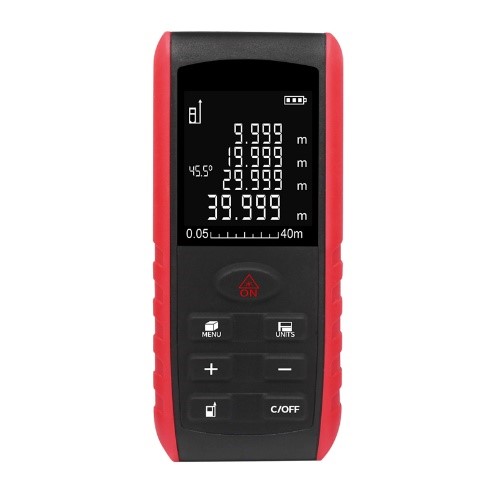

Laser Distance Meter (Red E40)
The E40 laser distance meter measures distances up to 40m with laser-point accuracy. Additional functions include area, volume, distance, addition, subtraction, history etc. Digital angle measurement displayed on screen. Professional rubberised case. 99 units of historical data memory. Perfect for realtors and builders or anyone who needs to make quick, easy measurements. Includes batteries and carry strap.
Features:
- High accuracy
- Single measurement
- Continuous measurement
- Distance, area and volume measurement
- Pythagoras measurement
- 4 lines of concurrent data display
- Angle degrees displayed on screen
- Switchable between meters (m), inches (in), feet (ft)
- Front or back measurement starting point
- Robust ABS rubberised case
- Add or subtract measurements
- Backlit LCD screen
- Power saving auto switch off
- 99 units of historical data memory
- Digital angle finder
Specifications:
- Measuring Range: 0.05m~40m
- Measuring Units: m, ft, in
- Area Units: m2, ft2, in2
- Volume Units: m3, ft3, in3
- Historical Data: 99
- Laser Auto Switch Off: 30 sec
- Instrument Auto Switch Off: 180 sec
- Dimensions: 12cm x 5.3cm x 2.6cm (H x W x L)

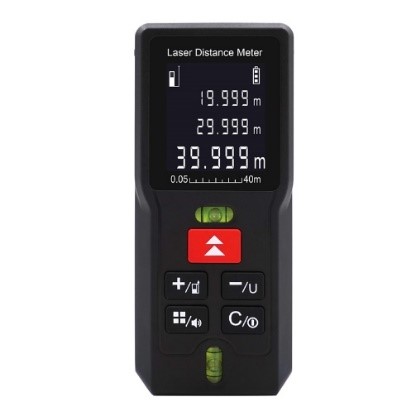

Laser Distance Meter (BLACK MD Range)
MD60 Price: R500 – measures up to 60m
MD80 Price: R550 – measures up to 80m
MD100 Price: R790 – measures up to 100m
The MD range comes in 4 models measuring distances with laser-point accuracy. Additional functions include area, volume, distance, addition, subtraction, history etc. Perfect for realtors and builders or anyone who needs to make quick, easy measurements.
Features:
- High accuracy
- Single measurement
- Continuous measurement
- Distance, area, and volume measurement
- Pythagoras measurement
- Switchable between meters (m), inches (in), feet (ft)
- Front or back measurement starting point
- Add or subtract measurements
- Backlit LCD screen
- Power-saving auto switch off
- 20 historical data memory
- Level indicator
- Silence function
Specifications:
- Measuring Range: 0.05m~40m / 60m / 80m / 100m
- Measuring Units: m, ft, in
- Area Units: m2, ft2, in2
- Volume Units: m3, ft3, in3
- Historical Data: 20
- Laser Auto Switch Off: 30 sec
- Instrument Auto Switch Off: 180 sec
- Dimensions: 11cm x 4.6cm x 2.5cm (H x W x L)

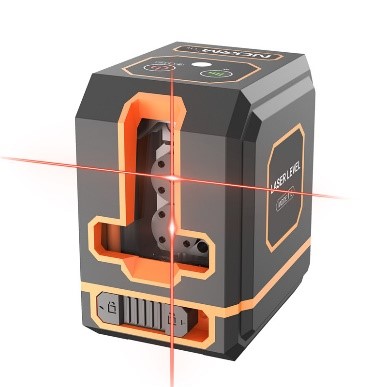

T15 Red & T16 Green Lithium Laser Level
T15 Red 12m Price: R800.00
The laser level projects red vertical and horizontal lines onto flat surfaces up to 12m away. A magnetic pendulum system ensures automatic level alignment. Universal 1/4” thread allows for tripod mounting. A complimentary basic tripod is included, however the level can also be mounted on any standard ¼” camera tripod. Users can easily ensure the item they are installing is level. Perfect alignment of tiles, pictures, mirrors, kitchen cabinets, curtain rails, wall studding, windows, doors, etc.
Features:
- Rechargeable lithium battery
- Self-Levelling laser
- Automatic level alignment
- Optical “out-of-level” signal when the unit is outside its self-levelling range
- High quality diode for clear laser lines
- 3 brightness settings
- 12m working range
- Sturdy rubberised casing
- Pendulum lock protects unit during transport
Specifications:
- Power: 1000mAh built-in lithium battery
- Recharging: Type C interface
- Laser Colour: Red light
- Material: ABS Plastic/rubber
- Laser beam: 1 horizontal 1 vertical
- Laser brightness: 3 settings
- Beam emission angle: (H/V) 120°/120°
- Levelling compensation range: 4°±1°
- Protection level IP rating: IP54
- Levelling accuracy: ±3mm/10m
- Tripod thread: 1/4 Inch
- Size/Dimensions: 81.5mm x 71mm x 55.75 mm
- Weight: 206g

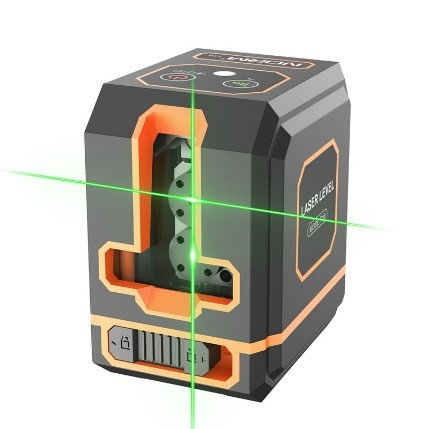

T16 Green 20m Price: R950.00
The laser level projects green vertical and horizontal lines onto flat surfaces up to 20m away. Green lasers have a greater working range than traditional red laser lines. A magnetic pendulum system ensures automatic level alignment. Universal 1/4” thread allows for tripod mounting. A complimentary basic tripod is included, however the level can also be mounted on any standard ¼” camera tripod. Perfect alignment of tiles, pictures, mirrors, kitchen cabinets, curtain rails, wall studding, windows, doors, etc.
Features:
- Rechargeable lithium battery
- Self-Levelling laser
- Automatic level alignment
- Greater working range than traditional red laser lines
- Optical “out-of-level” signal when the unit is outside its self-levelling range
- High quality diode for clear laser lines
- 3 brightness settings
- 20m working range
- Sturdy rubberised casing
- Pendulum lock protects unit during transport
Specifications:
- Power: 1000mAh built-in lithium battery
- Recharging: Type C interface
- Laser Colour: Green light
- Material: ABS Plastic/rubber
- Laser beam: 1 horizontal 1 vertical
- Laser brightness: 3 settings
- Beam emission angle: (H/V) 120°/120°
- Levelling compensation range: 4°±1°
- Protection level IP rating: IP54
- Levelling accuracy: ±3mm/10m
- Tripod thread: 1/4 Inch
- Size/Dimensions: 81.5mm x 71mm x 55.75 mm
- Weight: 206g

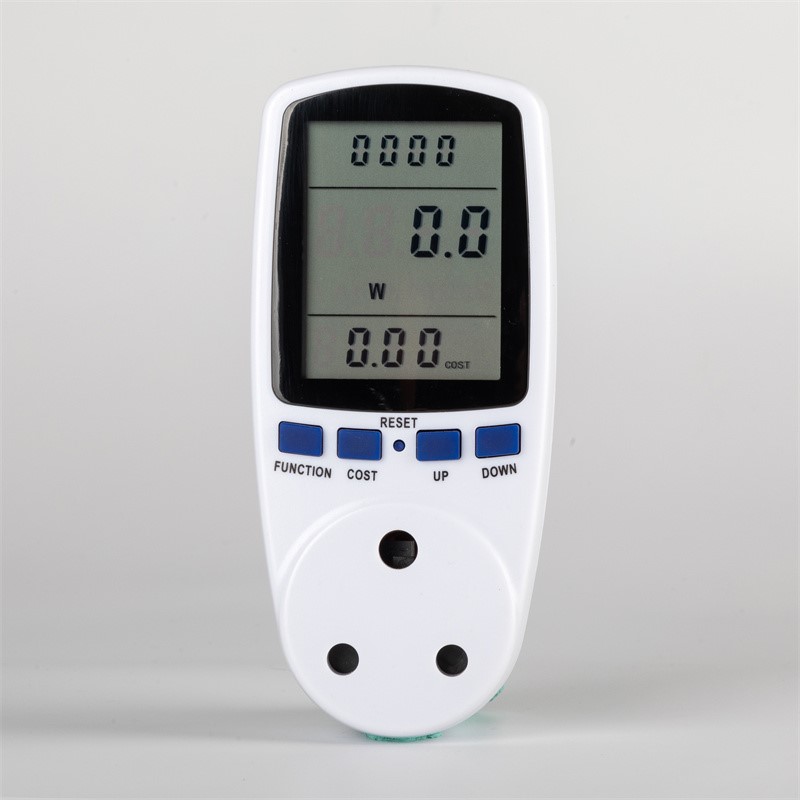

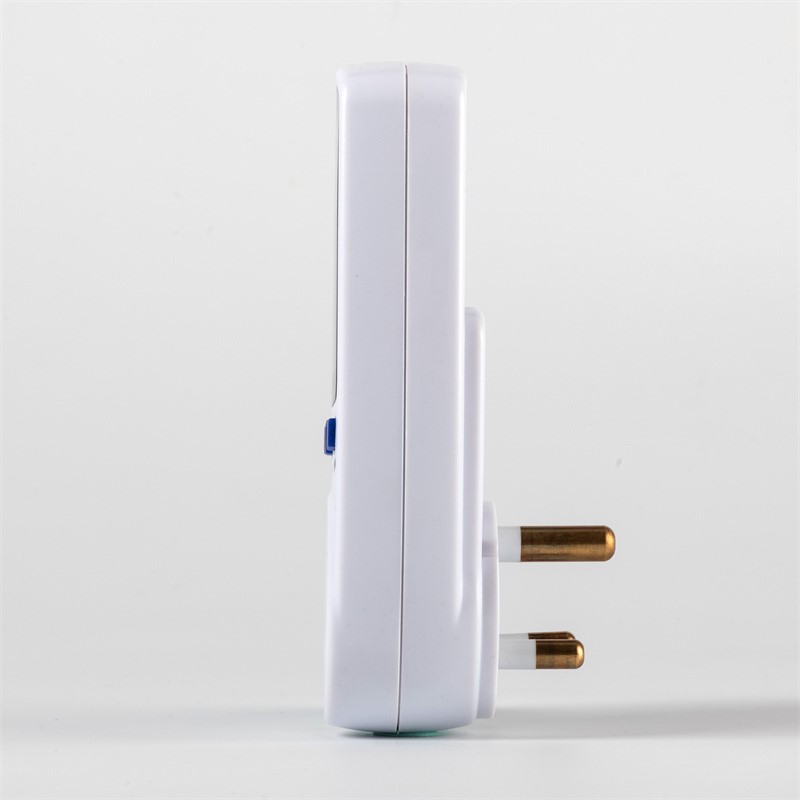

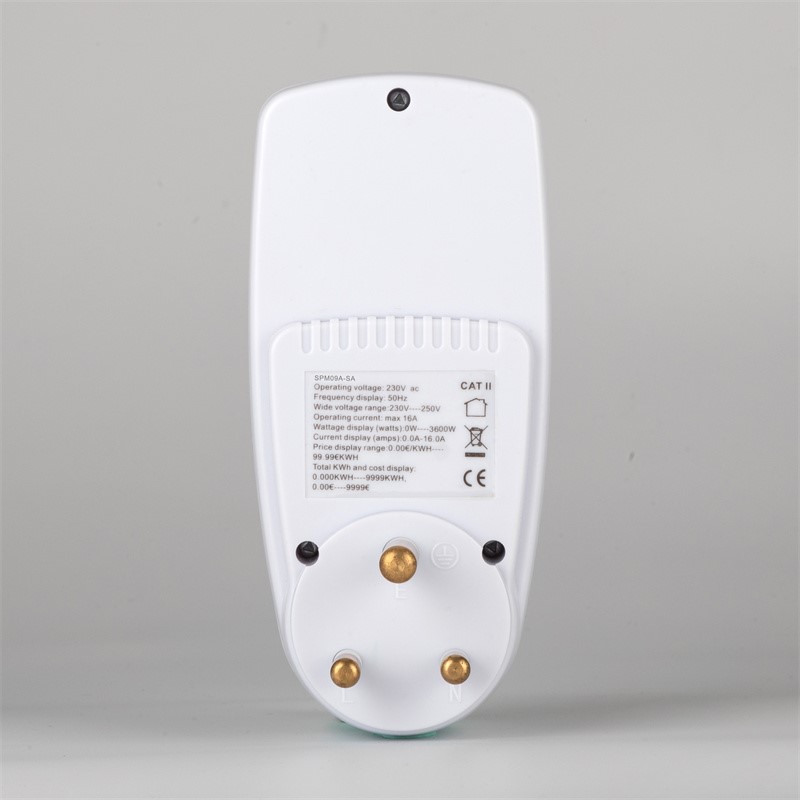

Digital Watt Meter
The watt meter is a plug and play and easy to use. You simply plug the watt meter into a wall socket and your appliance/device (NOT more than 3600W) into the meter. You will immediately see exactly what your appliance is using (in watts). If you want to measure multiple devices at once, you can plug a multiplug/extension cord into the outlet of the watt meter.
The Watt Meter will measure the following:
- Wattage: 0~3600W (Max 3600 watts)
- Voltage
- Current: 0-16A (Max 16A)
- Power Factor
- Electricity Cost
Specifications:
- Power consumption of the Power Meter Monitor: 0.5W
- Operating Voltage: 230VAC
- Frequency Display: 50HZ
- Operating Current: Max 16A
- Wide Voltage Range: 220V – 240V
- The set Wattage display (Watts) is 0~9999W but the actual Wattage display is 0~3600W
- Voltage display range: 0~V~9999V
- Current Display: 0.000A~16.000A
- Frequency display: 0Hz~999Hz
- Price display range: 0.00 Cost/KWH, 99.99 Cost/KWH
- TOTAL KWh and cost display: 0.000KWh, -9999KWh, 0.00 Cost – 9999 Cost
