Smart Power Systems
by BRANSON HOLDINGS
UPS Inverter MPSG range

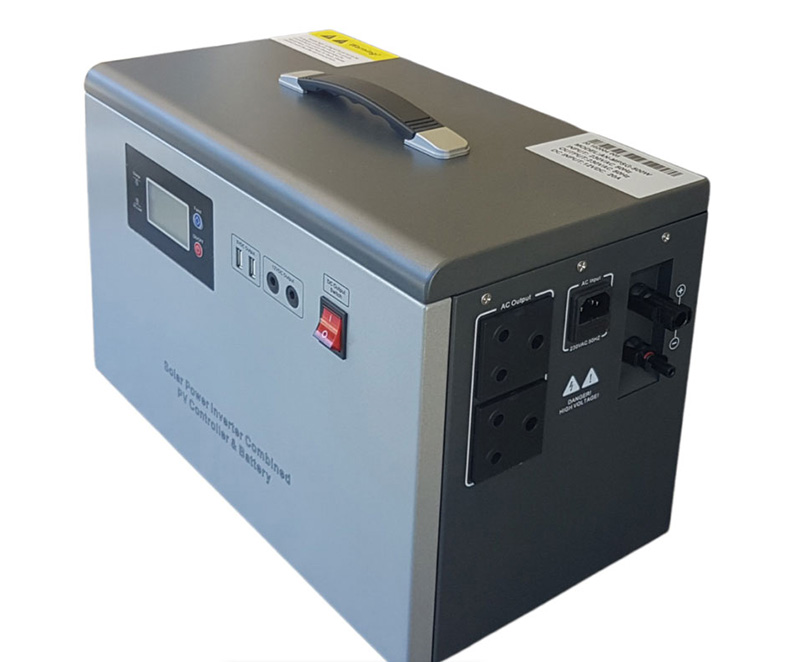

MPSG-500 (600 watt hour) Lithium ion UPS/Inverter Solar Power Station
Pure Sine Wave with MPPT Solar Controller and USB Ports
R10 390.00
Description
The MPSG is designed to work inside your home or business providing clean, pure sine electricity if the power goes off. If the electricity fails the MPSG takes over instantly, providing uninterrupted power to your electronics. USB and direct 12v outlets can be used as a power bank even when the main machine is off.
A built-in MPPT solar controller can also provide power away from the grid. Ideal for remote locations, smallholdings, farms or camping trips but not solely an off-grid system.
A solar panel is not required to run the power station but can be added at any time to extend battery life.
The MPSG range has a built in Lithium Ion Battery and can either be:
- Charged from a standard wall socket
- Connected to a solar panel
- Or plugged into a wall socket and solar panel at the same time
Lithium batteries have a longer lifespan than lead acid batteries.
The MPSG-500 would run an average modern LCD TV (100W), low energy lamp (10W) and wi-fi router (10W). The more you plug in the shorter the run time. The power used by any appliance can easily be measured by using our Watt Meter.
Features
- Uninterrupted Power Supply (UPS)
- Double CPU intelligent control technology
- Pure sine wave output for sensitive equipment
- Lithium Ion battery pack
5VDC-USB and 12VDC output ports - Digital LCD information display
- Replaceable battery
- High-efficiency MPPT solar controller
- MC4 standard solar connectors
- 3 pin South African socket outlets
- Mains, Solar and Power Saving modes
- Portable with carrying handle
- 2 x peak surge capacity
- Long run time
- Simple operation
- Fully automatic
- All-in-one
Specifications
- Model: MPSG-500
- Rated Power: 500W
- Peak Surge: 1000W
- Battery: 600Wh Lithium
- Solar Controller: MPPT
- Solar Connection: Standard
- MC4 ports
- Solar Voltage: 12V
- AC Input Voltage: 145-275VAC
- AC Input Frequency: 50Hz
- AC Output Voltage: 220VAC
- Inverter Output Voltage: 220VAC plus minus 5%
- Inverter Output Frequency: 50Hz plus minus 1%
- Output Wave Form: Pure Sine Wave
- Transfer Time: Typical 2-6ms
- Dimensions: 23cm x 43cm x 30cm
- Weight: 15Kg
What’s in the box
- MPSG-500 Power Station
- Power Cord
- User manual
MPSG-1000 (1200 watt hour) Lithium Ion UPS/Inverter Solar Power Station
Pure Sine Wave with MPPT Solar Controller and USB Ports
R15 390.00
Description
The MPSG is designed to work inside your home or business providing clean, pure sine electricity if the power goes off. If the electricity fails the MPSG takes over instantly, providing uninterrupted power to your electronics. USB and direct 12v outlets can be used as a power bank even when the main machine is off.
A built-in MPPT solar controller can also provide power away from the grid. Ideal for remote locations, smallholdings, farms or camping trips but not solely an off-grid system.
A solar panel is not required to run the power station but can be added at any time to extend battery life.
The MPSG range has a built in Lithium Ion Battery and can either be:
- Charged from a standard wall socket
- Connected to a solar panel
- Or plugged into a wall socket and solar panel at the same time
Lithium batteries have a longer lifespan than lead acid batteries.
The MPSG-1000 would run an average modern LCD TV (100-200W), low energy lamp (10W) and wi-fi router (10W) or a laptop (75W), wi-fi router (10W), ink jet printer (70W). The more you plug in the shorter the run time. The power used by any appliance can easily be measured by using our Watt Meter.
Features
- Uninterrupted Power Supply (UPS)
- Double CPU intelligent control technology
- Pure sine wave output for sensitive equipment
- Lithium battery pack
- 5VDC-USB and 12VDC output ports
- Digital LCD information display
- Replaceable battery
- High-efficiency MPPT solar controller
- MC4 standard solar connectors
- 3 pin South African socket outlets
- Mains, Solar and Power Saving modes
- Portable with carrying handle
- 2 x peak surge capacity
- Long run time
- Simple operation
- Fully automatic
- All-in-one
Specifications
- Model: MPSG-1000
- Rated Power: 1000W
- Peak Surge: 2000W
- Battery: 1200Wh Lithium
- Solar Controller: MPPT
- Solar Connection: Standard MC4 ports
- Solar Voltage: 24V
- AC Input Voltage: 145-275VAC
- AC Input Frequency: 50Hz
- AC Output Voltage: 220VAC
- Inverter Output Voltage: 220VAC plus minus 5%
- Inverter Output Frequency: 50Hz plus minus 1%
- Output Wave Form: Pure Sine Wave
- Transfer Time: Typical 2-6ms
- Dimensions: 24cm x 44cm x 33cm
- Weight: 23Kg
What’s in the box
- MPSG-1000 Power Station
- Power Cord
- User manual
The Original Smart Power Systems
The Smart Power System (SPS) does not require an electrician. It is designed to provide electricity if the power goes off. If the electricity fails, the SPS takes over instantly, providing uninterrupted power to your connected electronics.
Design features – SPS-1000 & SPS-600
- Simple operation / plug and play
- Fully automatic
- Uninterrupted power (UPS)
- All-in-one cabinet
- 1000W & 600w Pure Sine Wave output
- Transfer Time: Typical 2-6ms
- Intelligent CPU control
- PWM Solar charge controller
- Automatic Voltage Regulation
- Digital LCD Information display
- Low battery/overload warning
- 2 x peak surge capacity
- On wheels
- No exposed wiring
- Lockable battery compartment
- Fan cooling
- Noise Level: Less than 40db (1m)
- Not for connection to a DB Board
Additional Benefits
The SPS-1000 and SPS-600 can use solar power
The simple +/- sockets on each machine make connection to a solar panel easy. A controller regulates the incoming electricity to store charge in the batteries and run appliances.
A solar panel is not needed to run the machine but can be added at any time.
The solar function can operate alongside or totally free of mains power. Ideal for remote locations, smallholdings, farms and camping trips.
The solar capability offers a valuable safety net. If the power ever fails for more than a few hours the SPS can still provide vital free electricity, day after day, without fail.
The SPS-1000 and SPS-600 can be used as:
Standard
Plugged into a standard wall socket
Solar
Connected to a solar panel
Both
Plug into a wall socket and solar panel at the same time
Aokly LiFePO4 Lithium Iron Phosphate Battery
ALFP-12100(12.8V 100Ah)
Price: R6 990.00

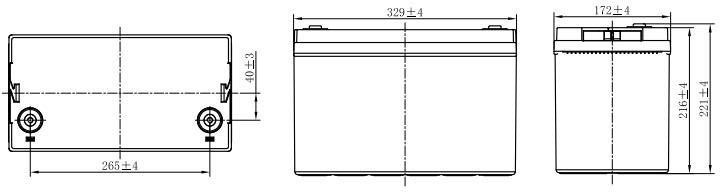

Physical Dimensions
Applications
- Solar/Wind Energy Storage
- Surveillance/Alarm Systems
- Camping Applications
- Power Tools
- Alarm Systems
- Back-up Power for UPS/EPS Systems
LiFePo4 Features
- Longer Life: Up to 5 times the cycle life of a lead acid battery
- Lighter Weight: About 60% lighter than an equivalent lead acid battery
- Higher Power: Delivers twice the power of a lead acid battery while maintaining high energy capacity
- Lead Acid Replacement: ‘Drop-in’ replacement for lead acid batteries
Specifications
- Nominal Voltage: 12.8v
- Nominal Capacity: 100Ah
- Energy: 1280Wh
- Max Discharge Current: 100A
- Peak Discharge Current: 120A (3s)
- Over Charge Protection: 14.6V
- Over Discharge Protection: 10V
- Max Charge Current: 20A
- Recommended Charge Voltage: 14.2 – 14.6V
- Weight: 12kg
- Dimensions: 33mm x 18mm x 22mm (L x W x H)
- Case Material: ABS
- Enclosure Protection: IP30Nominal Voltage 12.8V
Aokly Deep Cycle GEL Battery
100Ah (10Hr) 12V
Price: R2990.00
Specifications
- Weight 28kg
- Rated Capacity: 100Ah (10Hr), 105Ah (20Hr)
- Maintenance free
- Install upright
- Spill proof/leak proof
- Valve regulated
- Low self-discharge
- Rugged and vibration-resistant
- Double layer post sealing
- Certified to CE/ISO/IEC/OHSAS standards
- Wide operating temperature
- Terminal Type: F4 – Bolts & Washers Included
- Net Weight: 28kg
- Dimensions: 329mm x 172mm x 214mm

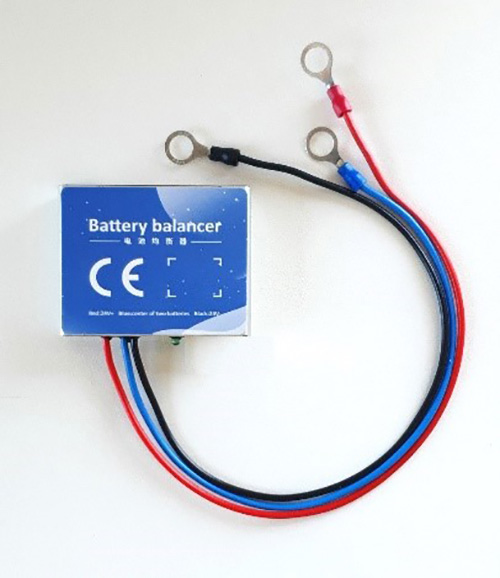

24V Battery Balancer / Equaliser for lithium battery
Price: R590.00
A balancer monitors voltage between batteries wired in series. If voltage deviates then the higher voltage battery will discharge to the lower voltage battery until they are equal.
A 24v Balancer is recommended when installing 2 x 12v batteries in series (24v). A balancer is not needed for batteries in parallel.
Specifications
-
•24V Active balancer
• For 2 x 12V batteries wired in series (24v)
• Monitors battery voltage
• Reverse polarity protection
• Maintains optimal battery condition
• Prolongs battery life
• Up to 4Amp inter battery balancing
• Includes wiring and connectors
• Dimensions 6,5cm x 1,8cm x 5,5cm (w x h x d)
